Room size
|
small, up to 25 m²
|
Set-up
|
free-standing, min. 15cm wall distance
|
Min. amp power
|
from 50 watts
|
Max. short term handling
|
400 watts
|
Frequency Response
|
35 Hz - 32 kHz (-10 dB)
|
Weight
|
20.5 kg
|
Dimensions mm over all
|
W 154 (239 incl. Baseplate) | H 1,013 | D 353
|
Room size
|
small, up to 25 m²
|
Set-up
|
free-standing, min. 15cm wall distance
|
Connectivity
|
1 x analog, 1 x optical digital, 1 x coax digital, 1 x wireless**
|
System Power Output
|
250 watts per speaker (bi-amping)
|
Frequency Response
|
35 Hz - 32 kHz (-10 dB)
|
Weight
|
20.5 kg
|
Dimensions in mm
|
W 154 (239 incl. Baseplate) | H 1,013 | D 353
|
*Coming soon **in combination with AYERS HD 10 Stream Connect
The high-end woofer placed on the side wall cannot be located and enables this small floor standing speaker to show up with a performance that you will not soon forget - made in Hamburg.
The speaker has the potential for one or the other open mouth. With a width of only around 15 cm, it has a particularly elegant silhouette. It doesn't show her impressive muscles until you let here sound. The high-end woofer - very laboriously already separated at an unusually low 100 Hz - cannot be located at all and is therefore not perceived as a player. Nevertheless, it produces an extremely deep, dry bass.
The midrange woofer fills the upper bass range and the low voices cleanly and in great detail. Due to the elaborate tuning and the slim front, the action is completely detached from the speaker and conjures up a fascinating spatiality in your living room. The loudspeaker disappears from your inner eye and offers direct access to the soul of your music - even if you only hear softly.
The crowning glory is the high-end tweeter, which depicts the top octaves with a sharp, but never shrill or pointed tone. Cymbals, triangles or high overtones of a grand piano bubble into the room at lightning speed and lively. The THREE offers a long-term, impressive listening experience in small rooms, also for home cinema fans.
Enjoy the "wolf in sheep's clothing". Slim and elegant in a small area with a more than impressive performance.
With the AYERS THREE and the well-known concept of a laterally positioned subwoofer, we have created a real masterpiece that is certainly one of the best of its kind:

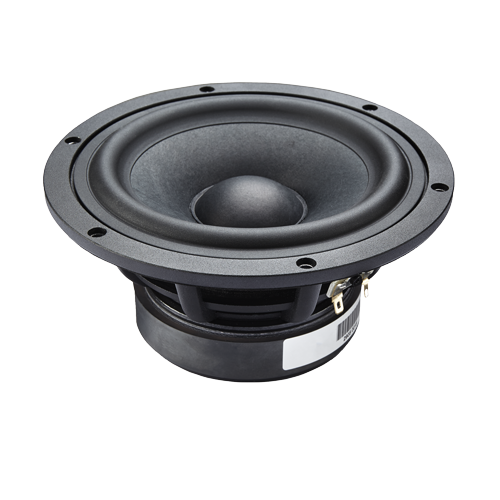

The THREE reproduces the deep bass with an 18 cm high-end long-throw woofer, the membrane of which is made of glass fibre reinforced paper. In this way an impressive depth down to the 20 Hz region is achieved. In the lateral position, it was important to avoid any kind of sound radiation that would make the driver locatable. We succeeded in using an extremely complex filter with an effective filter steepness of 24 dB at 100 Hz. For a floor standing loudspeaker in this price range, the THREE is well above the market level.

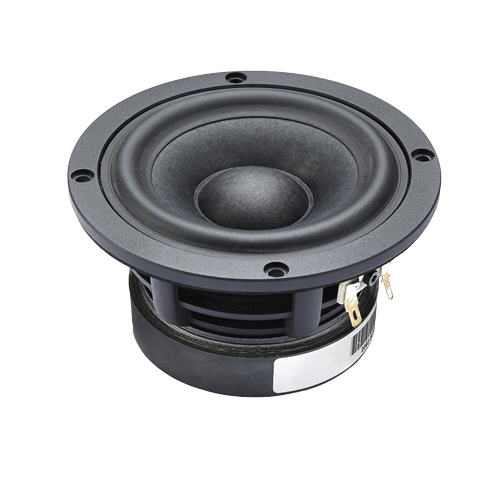

The 12 cm midrange woofer takes over from 100 Hz and reproduces the upper bass range and low voices. It is also equipped with a glass fibre reinforced paper membrane and an aluminium die-cast basket, is filtered with effective 24 dB and 18 dB.

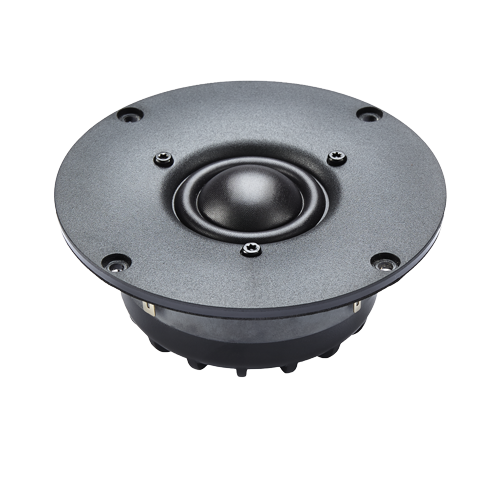

At approx. 750 Hz, the high-end silk dome tweeter enters the action. Its size of 30 mm and the special tuning of the crossover enables this early transition. This crossover frequency is ideal for spatial imaging and the phase addition of the loudspeakers. With the THREE, the sound is absolutely holographic, also due to the narrow front. The interaction of the three drivers is so seamless that you cannot hear from your listening position which driver is playing what. Here, too, the goal of a broad radiation pattern is achieved, so that a spatial sound image is created outside the ideal listening position. The precision-coated textile membrane of the tweeter allows excellent high frequency radiation up to over 20 kHz.

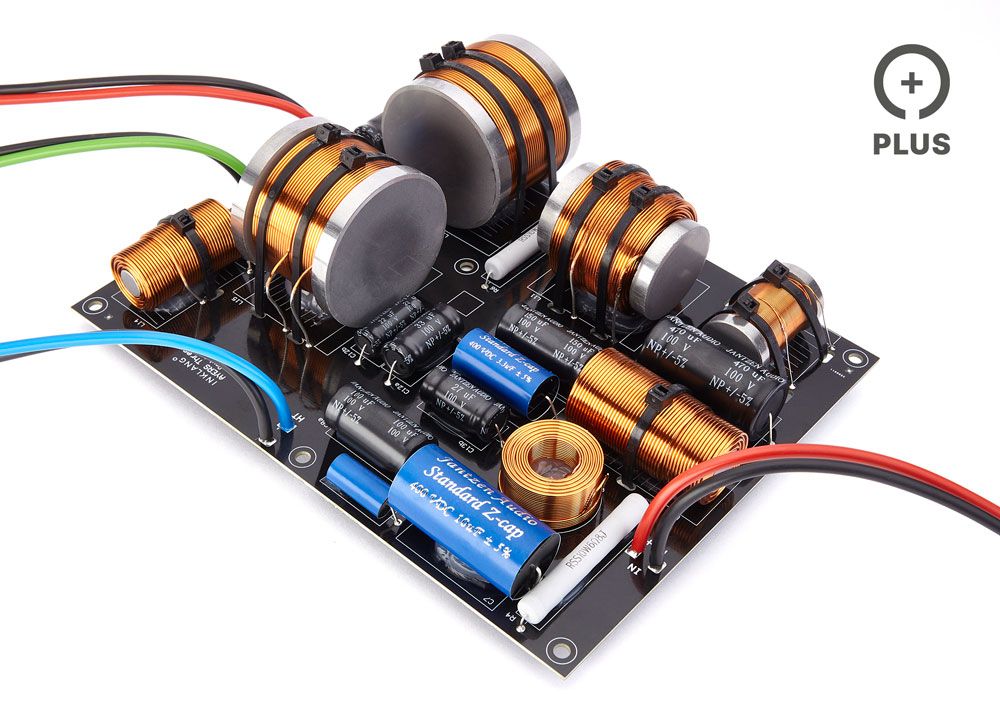

Like all crossovers in the Ayers series, the THREE's crossover was developed using a real data computer-aided simulation and optimized in terms of linearity, phase addition, distortion behaviour of the drivers and the sound that is typical for INKLANG. Based on the calculated structure of the crossover, a Monte Carlo simulation was carried out in step two in order to calculate a reduction in the crossover components with identical results. A lower number of components reduces the losses and enables the cost savings to be invested in higher component quality.
The THREE has its own, airtight chamber ready for the crossover, in which the components are free from any pressure change in the active enclosure and are therefore not excited to vibrate.
Frequency Response (-10 dB/0°)
|
28 Hz - 32 kHz
|
Short term handling (watts)
|
400.0
|
Sensitivity dB (1W/1 m)
|
83.0
|
Impedance nominal/minimum (Ω)
|
4.0/2.8
|
Filter (dB)
|
18 TW/ 12 MW / 18 WF
|
Crossover Frequencies
|
100, 750 Hz
|
1 x 182 mm (7.0″) Woofer
|
|
1 x 120 mm (4.75″) Midwoofer
|
|
1 x 30 mm (1.2″) Tweeter
|
|
bass-reflex
|
|
Single-Wire Terminal for
|
|
max. cross section: 8 mm²
|
|
5-6 mm Bananas
|
|
Multi-Space Spade
|
|
20.5 kg
|
|
154 (239 incl. baseplate) x 1,013 x 353
|
|
0° C up to 40° C
|
|
no proximity to fireplaces / stoves
|
|
no direct sunlight for hours
|
|
Frequency Response (-10 dB/0°)
|
28 Hz - 32 kHz
|
System Power Output (watts)
|
250 per speaker (bi-amping)
|
Amplifier technology
|
Direct Digital Feedback Amplifier
|
Auto-on/standy
|
Audio signal
|
Crossover Frequency
|
160, 1,000 Hz
|
Filter
|
DSP based
|
DSP-Room-EQ
|
Wall, Free, Dynamik
|
Selectable positions
|
left, right, Dual stereo
|
1 x 182 mm (7.0″) Woofer
|
|
1 x 120 mm (4.75″) Midwoofer
|
|
1 x 30 mm (1.2″) Tweeter
|
|
bass-reflex
|
|
Analog in (stereo) variabel
|
|
Toslink optical variable
|
|
SPDIF coxial variable
|
|
Wireless ready**
|
|
Klearnet 5,2 GHz Network
|
|
**in combination with AYERS HD 10 Stream Connect
Toslink optical pass thru
|
|
SPDIF coxial pass thru
|
|
1x USB micro Type-B (Service/Update)
|
|
44.1 -192 kHz
|
|
16-24
|
|
20.5 kg
|
|
154 (239 incl. baseplate) x 1,013 x 353
|
|
295 watts max.
|
|
Standby 0.5 Watts
|
|
0° C up to 40° C
|
|
no proximity to fireplaces / stoves
|
|
no direct sunlight for hours
|
|
*Coming soon
Frequency Response (-10 dB/0°)
|
28 Hz - 32 kHz
|
Short term handling (watts)
|
400.0
|
Sensitivity dB (1W/1 m)
|
83.0
|
Impedance nominal/minimum (Ω)
|
4.0/2.8
|
Filter (dB)
|
18 TW/ 12 MW/ 18 WF
|
Crossover Frequency
|
100, 750 Hz
|
1 x 182 mm (7.0″) Woofer
|
|
1 x 120 mm (4.75″) Midwoofer
|
|
1 x 30 mm (1.2″) Tweeter
|
|
bass-reflex
|
|
Single-Wire Terminal for
|
|
max. cross section: 8 mm²
|
|
5-6 mm Bananas
|
|
Multi-Space Spade
|
|
20.5 kg
|
|
154 (239 incl. baseplate) x 1,013 x 353
|
|
0° C up to 40° C
|
|
no proximity to fireplaces / stoves
|
|
no direct sunlight for hours
|
|
Frequency Response (-10 dB/0°)
|
28 Hz - 32 kHz
|
System Power Output (watts)
|
250 per speaker (bi-amping)
|
Amplifier technology
|
Direct Digital Feedback Amplifier
|
Auto-on/standy
|
Audio signal
|
Crossover Frequency
|
160, 1,000 Hz
|
Filter
|
DSP based
|
DSP-Room-EQ
|
Wall, Free, Dynamik
|
selectable positions
|
left, right, Dual stereo
|
1 x 182 mm (7.0″) Woofer
|
|
1 x 120 mm (4.75″) Midwoofer
|
|
1 x 30 mm (1,2″) Tweeter
|
|
bass-reflex
|
|
Analog in (stereo) variabel
|
|
Toslink optical variable
|
|
SPDIF coxial variable
|
|
Wireless ready**
|
|
Clearnet 5,2 GHz Netzwerk
|
|
**in combination with AYERS HD 10 Stream Connect
Toslink optical pass thru
|
|
SPDIF coxial pass thru
|
|
1x USB micro Type-B (Service/Update)
|
|
44.1 -192 kHz
|
|
16-24
|
|
20,5 kg
|
|
154 (239 incl. baseplate) x 1,013 x 353
|
|
295 watts max.
|
|
Standby 0,5 Watts
|
|
0° C up to 40° C
|
|
no proximity to fireplaces / stoves
|
|
no direct sunlight for hours
|
|
*Coming soon
